| Model | DG-WS7110 |
| Hardware Specifications |
| System specifications |
| Memory | 4 GB |
| Flash memory | 16 MB |
| Dimensions and Weight |
| Unit dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets)
486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets) |
| Rack size | 1 RU |
| Unit weight | 2.7 kg (5.95 lbs) |
| Shipping weight | 3.5 kg (7.72 lbs) |
| Mounting | Rack-mount |

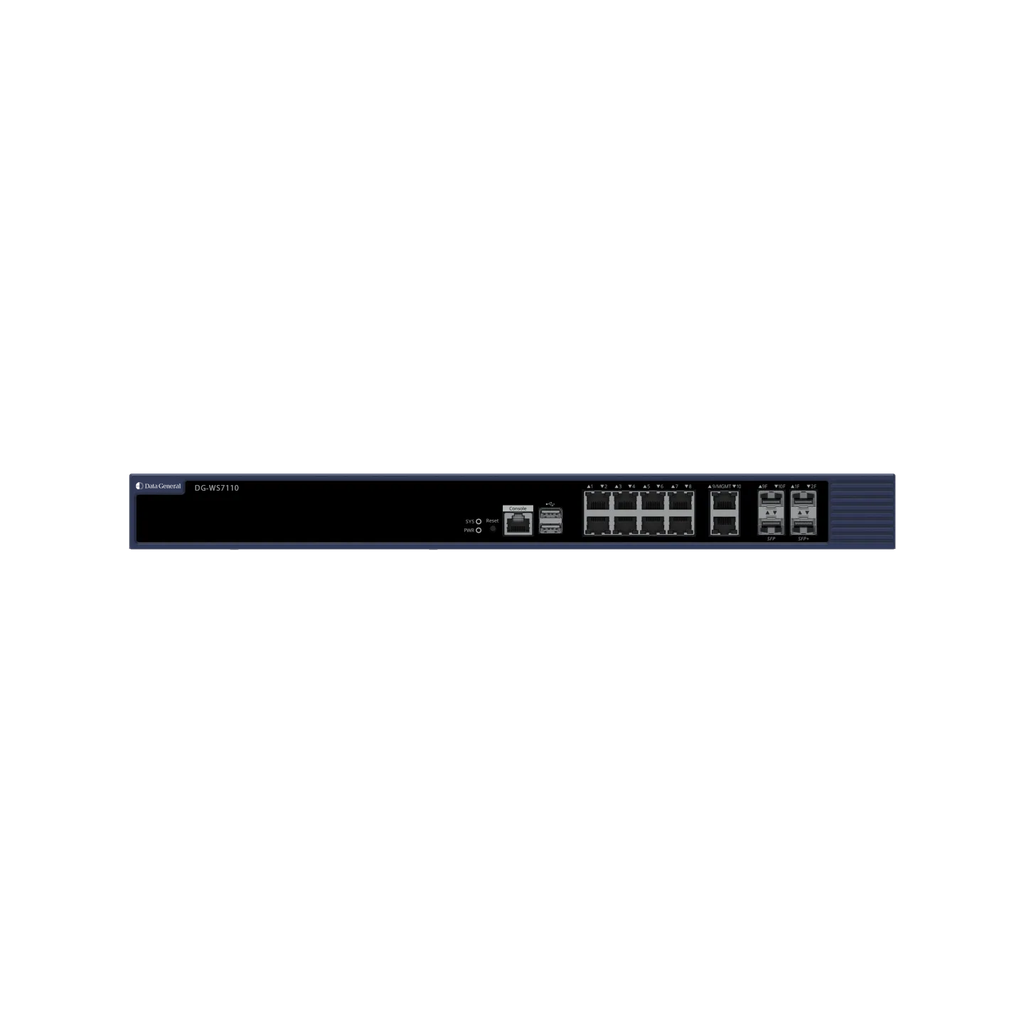

| Port Specifications |
| Fixed service port | 8 x 10/100/1000BASE-T ports
2 x 1GE SFP/RJ45 combo ports
● RJ45 ports support 10/100/1000BASE-T.
● Port 9/MGMT can also be used as a management port.
2 x 10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port
2 x USB 3.0 ports, compatibility with USB 2.0 |
| Status LED | 1 x system status LED
1 x power status LED
8 x 10/100/1000BASE-T port LEDs
2 x 1GE SFP/RJ45 combo port LEDs
2 x 10GE SFP+ port LEDs |
| Button | 1 x Reset button
● Press the button for shorter than 3 seconds. Then the device restarts.
● Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Note | A combo port consists of an optical Ethernet port and an electrical Ethernet port on the panel and can be used as the optical or electrical port at one time. When either of the Ethernet ports is working, the other port is automatically shut down. You can select a port type as required. |
| Power Supply and Consumption |
| Maximum power consumption | 30 W |

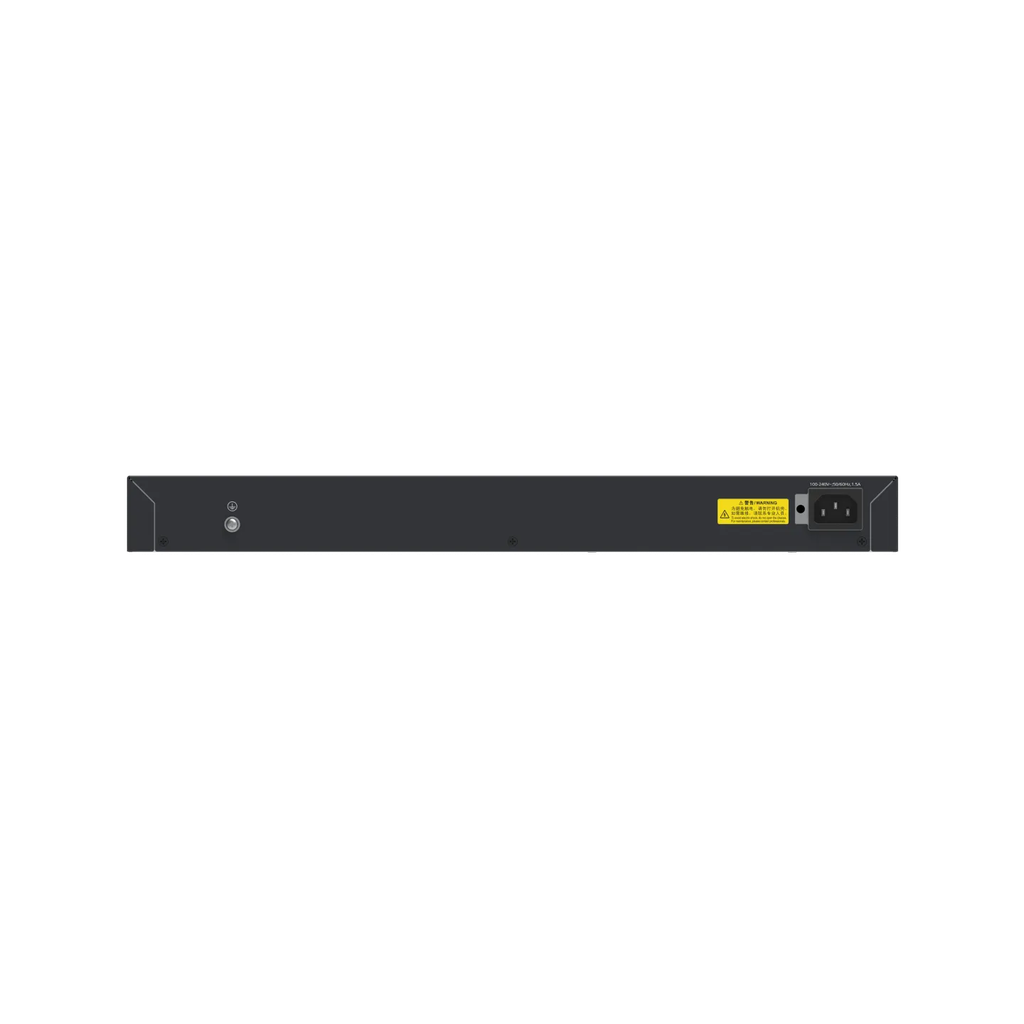

| Power input | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Power output | 12 V/3.33 A |
| Environment and Reliability |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Altitude | Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)
Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Software Specifications |
| Performance Indicators |
| Default number of managed APs | 32
Note: The default number of APs that can be managed by the DG-WS7110 is subject to the AP model. For details, see the Ordering Information. |
| Maximum number of configurable APs | 2,048 |
| Maximum number of managed APs | 512
Note: The maximum number of APs that can be managed by the DG-WS7110 is subject to the AP model. For details, see the Ordering Information. |
| Maximum number of managed clients | 5,120
Note: The maximum number of clients that can be managed by the DG-WS7110 is subject to the network environment. Contact technical support team for details. |
| Forwarding capacity | 10 Gbps (subject to the wireless network environment) |
| VLAN | 4,094 |
| Maximum number of clients supported by the built-in Portal server | 1,5 |
| ACL | 4,096 |
| MAC address table | 32,768 |
| ARP table | 32,768 |
| Intra-AC roaming handoff time | < 50 ms |
| WLAN |
| IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax
Layer 2 and Layer 3 topology supported between an AP and an AC
An AP can automatically discover the accessible AC.
An AP can be automatically upgraded through the AC.
An AP can automatically download the configuration file from the AC.
CAPWAP through NAT |
| Roaming | Intra-AC Layer 2 or Layer 3 roaming
Inter-AC Layer 2 or Layer 3 roaming
Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode
Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode |
| Forwarding mode | Centralized forwarding
Local forwarding
Service-based flexible forwarding |
| Wireless QoS | AP/WLAN/STA-based bandwidth limiting
(STA-based rate limit range: 8–261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.)
Static and intelligent rate limiting based on STA quantity
Fair scheduling |
| User isolation | AC-based user isolation
AP-based user isolation
WLAN-based user isolation |
| Reliability | AC virtualization
AC failover
Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby)
Multi-AC cluster (N-to-N)
Remote intelligent perception technology (RIPT)
Non-stop service during upgrade |
| STA management | Access control based on the number of STAs associated with the AP
Access control based on the number of STAs associated with the SSID
Balanced access control based on the number of STAs associated with the AP
Balanced access control based on the AP traffic
Band steering
Configuration of the RSSI threshold in dBm (range: 0–100)
Configuration of the STA idle timeout period in seconds (range: 60–86,400) |
| WLAN optimization | Adjustment of the transmit power for beacon or probe response frames |
| RF management | Country or region code setting
Manual setting of the transmit power
Automatic setting of the transmit power
Manual setting of the operating channel
Automatic setting of the operating channel
Automatic adjustment of the data rate
Coverage Hole Detection
AP load balancing based on traffic and STA quantity
Band selection
Radio frequency interference (RFI) detection and mitigation |
| Security |
| IPv4 security authentication | Web-based authentication
802.1X authentication
MAB authentication |
| IPv6 security authentication | 802. 1X authentication
Web-based authentication |
| IEEE 802.11 security and encryption | Multi-SSID mode
SSID hiding
IEEE 802.11i-compliant PSK authentication
WPA and WPA2
WEP (WEP/WEP128)
TKIP
CCMP
ARP anti-spoofing |
| CPP | Supported |
| NFPP | Supported |
| WIDS | Supported |
| AP virtualization | Supported |
| Protocols |
| IPv4 protocols | Ping and Traceroute
DHCP server, DHCP client, DHCP relay, and DHCP snooping
DNS client
NTP
Telnet
TFTP server and TFTP client
FTP server and FTP client |
| IPv6 protocols | DNSv6 client
DHCPv6 relay and DHCPv6 server
TFTPv6 client
FTPv6 server and FTPv6 client
IPv6 CAPWAP
ICMPv6
IPv6 ping
Manual tunnels, automatic tunnels, and ISATAP
Manually configured IP addresses and automatically created local addresses
IPv6 traceroute
Neighbor discovery |
| IPv4 routing | Static routing, RIP, and OSPF |
| IPv6 routing | Static routing |
| Management |
| Network management | SNMP v1/v2c/v3
RMON
Syslog
Remote probe |
| Network management platform | Eweb
DG-WIS
Wi-Fi heat map |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
| Regulatory Compliance |
| Safety regulation | IEC 62368-1, EN 62368-1 |
| EMC regulation | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and EN 300 386 |
