UniFi Switch USW-48-POE, Capa 2 de 48 puertos (32 puertos PoE 802.3af/at + 16 puertos Gigabit) + 4 puertos 1G SFP, 195W, pantalla informativa

MXN $ 14,705.48 14705.48 MXN MXN $ 14,705.48

MXN $ 12,677.14

    Esta combinación no existe.

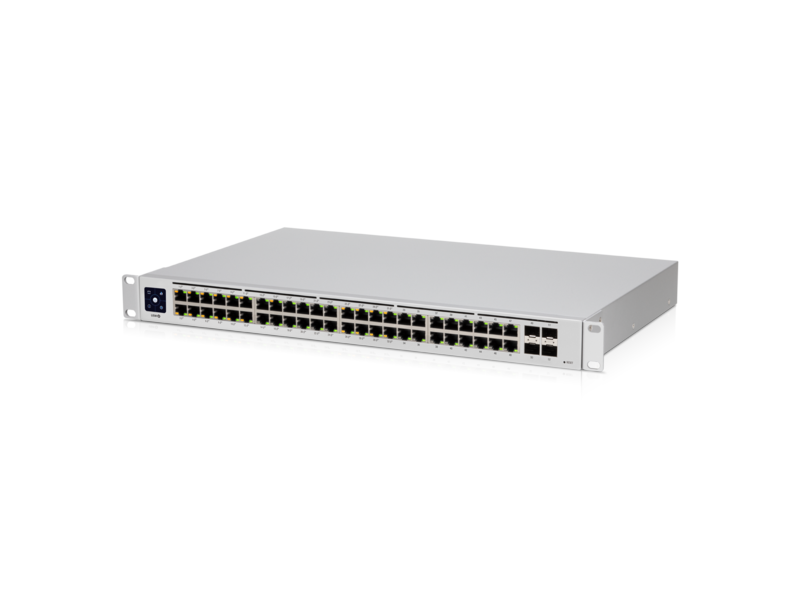

    Ubiquiti UniFi Switch 48 PoE

    Switch PoE gestionable de 48 puertos con (48) puertos Gigabit Ethernet que incluyen (32) puertos PoE + 802.3at y (4) puertos SFP. Potente conmutación UniFi de segunda generación

    El USW-48-PoE es un switch gestionable Gigabit de capa 2 con 48 puertos Gigabit Ethernet, incluidos 32 puertos 802.3at PoE + de detección automática y 4 puertos SFP. Proporciona enlaces Gigabit PoE a sus dispositivos Ethernet RJ45 y opciones de enlace ascendente de fibra Gigabit a su red empresarial. El USW-48-PoE cuenta con un LCM táctil de 1.3 "para proporcionar el estado

    Administrado y configurado por el controlador de red UniFi con soporte de aplicación móvil UniFi, el USW-48-PoE ofrece un amplio conjunto de funciones y protocolos de switching avanzados de capa 2, incluido el modo de operación (switching, mirroring o agregado) por puerto. El controlador de red UniFi y la aplicación móvil permiten a los administradores configurar y monitorizar prácticamente todas las funciones del switch en una interfaz gráfica de usuario desde cualquier lugar.

    ESPECIFICACIONES

    USW-48-POE

    Dimensions

    442.4 x 285 x 43.7 mm

    Weight

    4.52 kg

    With Rackmount Brackets

    4.61 kg

    Interfaces

    Networking

    Management

    (48) 10/100/1000 RJ45 Ports

    (4) 1G SFP Ethernet Ports

    Ethernet In-Band

    Total Non-Blocking Throughput

    52 Gbps

    Switching Capacity

    104 Gbps

    Forwarding Rate

    77.38 Mpps

    Power Method

    100-240VAC, 50/60 Hz, Universal Input

    Power Supply

    AC/DC, Internal, 240W

    Supported Voltage Range

    100 to 240VAC

    Max. Power Consumption (Excluding PoE Output)

    45W

    LEDs

    RJ45 Data Ports

    SFP Data Ports

    PoE; Speed/Link/Activity

    Link/Activity

    ESD/EMP Protection

    Air: ± 16 kV, Contact: ± 12 kV

    Shock and Vibration

    ETSI300-019-1.4 Standard

    Operating Temperature

    -5 to 40° C (23 to 104° F)

    Operating Humidity

    10 to 90% Noncondensing

    Certifications

    CE, FCC, IC

    Total Available PoE

    195W

    PoE Interfaces

    Ports 1-32

    POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

    Max. PoE Wattage per Port by PSE

    802.3at

    32W

    Voltage Range 802.3af Mode

    44-57V

    Voltage Range 802.3at Mode

    50-57V
