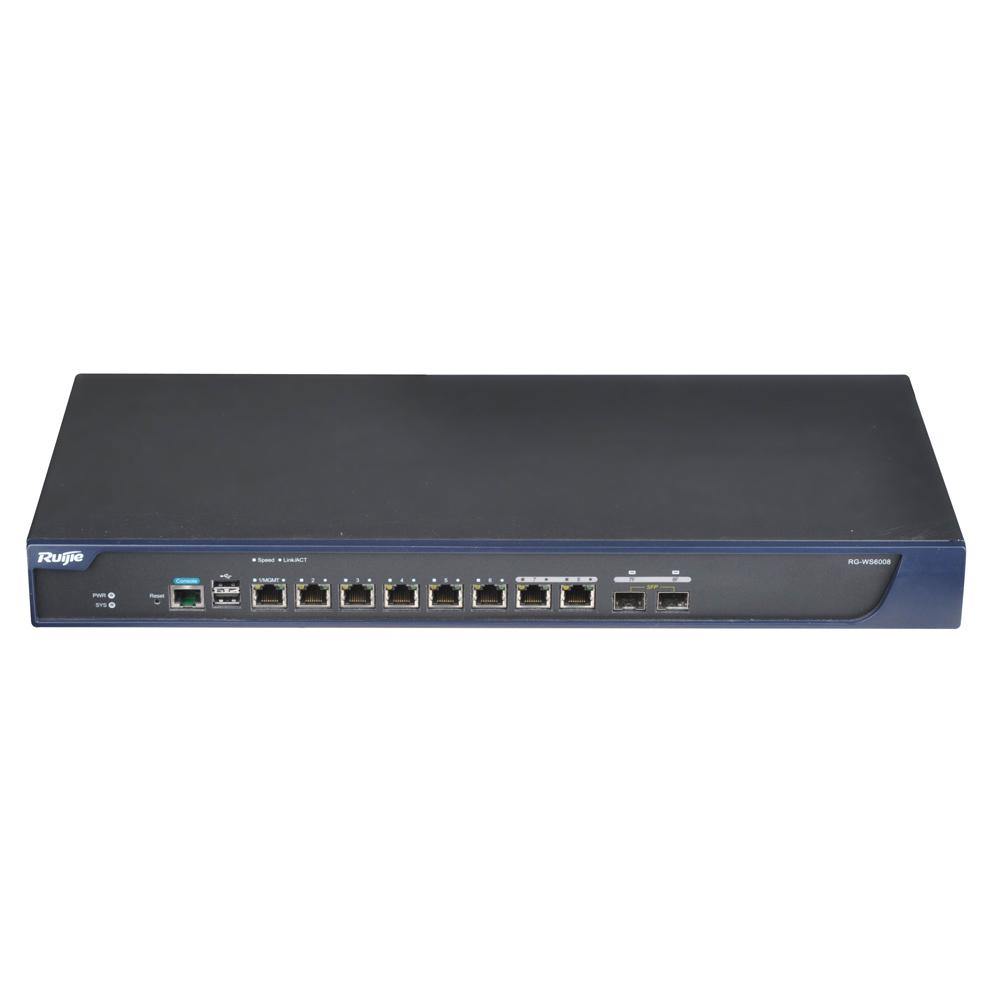

Ruijie RG-WS6008
Controladora local (opcional) para 32 APs Ruijie con ampliación a 448 APs.
Controlador inalámbrico Next-Gen, 6 puertos 1000BASE-T, 2 puertos combinados 1000BASE-T/1000BASE-X, 32 AP de forma predeterminada, máximo 200 AP, o máximo 400 puntos de acceso de pared por actualización de licencia.
La serie WS6000 de Ruijie es el controlador de red inalámbrica de clase empresarial de próxima generación que ofrece una solución inalámbrica segura, robusta y altamente escalable a un costo total de propiedad inmejorable.
Integración perfecta con Ruijie WIS en la nube que proporciona una solución inalámbrica integral para todo el ciclo de vida de la implementación inalámbrica. Con WIS, ahora puede disfrutar:
- Herramienta de inspección inalámbrica del sitio de planificación previa incorporada
- Validación de la implementación de WiFi mediante la aplicación de teléfono inteligente
- Optimización de WiFi basada en aprendizaje automático (optimización con un clic)
La tecnología de vanguardia de Ruijie VAC ayuda a aumentar la disponibilidad de los servicios y garantizar la continuidad del negocio. La serie Ruijie WS6008 también proporciona una forma rentable de habilitar WiFi para invitados altamente seguro mediante el uso de un enfoque de implementación de AP virtual.
El entorno WiFi de alta densidad típico tiende a degradar el rendimiento de la red inalámbrica debido a varias razones, como la interferencia de RF, la combinación de clientes, el uso compartido de un espectro inalámbrico limitado, etc. para resolver la mayoría de los problemas comunes en la implementación de WiFi de alta densidad automáticamente.
PPSK es también una de las nuevas características de seguridad incorporadas que ofrece la serie de CA inalámbrica Ruijie WS6000 para pequeñas y medianas empresas para brindar una experiencia de autenticación de personal segura pero simple.
CARACTERÍSTICAS
- Tecnología Virtual AC de alta disponibilidad
- WiFi para invitados protegido por AP virtual
- Autenticación empresarial PPSK
- Función Pre-AX, CorrectLink y AirReorder para optimización de WiFi de alta densidad
- Servicios en la nube de supervisión y optimización del servicio de inteligencia inalámbrica (WIS) gratuito.
ESPECIFICACIONES
| Model |
RG-WS6008 |
| Interfaces | |
| Service Ports | 6x 1000BASE-T ports |
| 2x 1000BASE-T/1000BASE-X ports (combo) | |
| Console Ports | 1x Console Port |
| USB Ports | 2x USB ports |
| Performance | |
| Switching Capacity | N/A |
| Packet Forwarding Rate | N/A |
| Default Number of Manageable APs | 32 |
| Maximum Number of Manageable APs | 224 APs or 448 wall APs (with license upgrade) |
| Maximum Number of Configurable APs | 2,048 |
| Maximum Number of Clients | 6,4 |
| 802.11 Performance | 8Gbps |
| VLAN | 4,094 |
| Maximum Number of Clients Supported by the Built-in Portal | 1,5 |
| ACL | 64K |
| Number of Wireless Users | 6,4 |
| MAC Address Table | 16K |
| Local Authentication | 300 wireless clients |
| ARP Table | 12K |
| IPv6 Neighbor Table | 10K |
| Inter-AC Roaming Switch Time | ≤50ms |
| Power | |
| Power Supply | -Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz |
| Power Consumption | <40W |
| + LAN | |
| WLAN | |
| LAN Protocols | ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s |
| 802.11 LAN Protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
| Pre-AX | Supported |
| CorrectLink | Supported |
| AirReorder | Supported |
| CAPWAP | Layer 2/Layer 3 network topology between an AP and AC |
| Enable an AP to automatically discover an accessible AC | |
| Enable an AP to automatically upgrade software version from an AC | |
| Enable an AP to automatically download configurations from an AC | |
| Network Address Translation (NAT) traversal | |
| Roaming | Intra-AC roaming, Inter-AC roaming |
| Forwarding | Local forwarding, Centralized forwarding |
| Wireless QoS | AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
| User Isolation | AC-based user isolation |
| AP-based user isolation | |
| WLAN-based user isolation | |
| Reliability | Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
| STA Management | AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
| STA RSSI Threshold | 0 to 100 |
| STA Idle Timeout | 60 to 86,400 seconds |
| STA Average Data Rate Threshold | 8 to 819,200 with the accuracy of 8Kbps |
| Adjusting Transmit Power of Beacon and Probe Response | Support |
| Offline Syslog | Support |
| Security | |
| IPv4/v6 Security | Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication |
| PPSK | Supported |
| Virtual AP | Supported |
| Virtual AC | Supported |
| 802.11 Security and Encryption | Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
| AAA | IEEE 802.1X |
| CPP | Support |
| NFPP | Support |
| WIDS/WIPS | Support |
| Internet Protocols | |
| IPv4 Protocols | Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
| IPv6 Protocols | DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel |
| Manual configuration address, automatic local address | |
| IPv4 Routing | Static routing, OSPF |
| IPv4 Routing Table Capacity | 8K |
| IPv4 Static Routing Table Capacity | 1K |
| IPv6 Routing | Static routing |
| IPv6 Routing Table Capacity | 1K |
| IPv6 Static Routing Table Capacity | 1K |
| Management and Maintenance | |
| Network Management | SNMP v1/v2c/v3, Web management, Syslog |
| Network Management Platform | Web management (Smart-web), RG-SNC management, Heat Map diagram |
| WIS Integration | Supported |
| User Access Management | Login via console port |
| Login via Telnet | |
| Login via SSH | |
| Upload to FTP | |
| Physical Specification & Others | |
| Lock | Support |
| LED Indicators | Status, Link/ACT |
| Dimensions (W x D x H) (mm) | 440 × 200 × 43.6 |
| Rack Height | 1RU |
| Weight | 2kg |
| Environmental Specifications | |
| Temperature | Operating Temperature: 0ºC to 45ºC |
| Storage Temperature: -40ºC to 70ºC | |
| Humidity | Operating Humidity: 10% to 90%RH (non-condensing) |
| Storage Humidity: 5% to 95%RH (non-condensing) | |
| Operating Altitude | 0-3000m |
| Certification | |
| EMC Standard | GB9254 |
| EN301 489 | |
| Safety Standard | GB4943 |
| EN/IEC 60950-1 |
